Configure the Room Schedule Card

Introduction

In this guided path, you will learn how to configure the Room Schedule card with your preferred calendar provider. The Room Schedule card is designed for single room scheduling and is viewed on a tablet-sized display, often placed at the room entrance.

The Room Schedule card is a type of service card that requires an administrator to configure a service, which in this case is a calendar provider. The calendar provider will contain information for all the rooms in an organization that can be used for conferencing, and will need to be configured so that it can communicate with the tablet devices located at each room to enable room booking functions.

Booking functions on this card include:

  • Book now – ability to book 30 minutes, 1 hour, or 1.5 hours from the current time, based on room availability.
  • Book in advance – book future time slots (on the same day only) or up to 7 days in advance, based on room availability.
  • Extend meeting – extend current meeting by 30 minutes, 1 hour, or 1.5 hours.
  • End meeting – end current meeting, and make the room available.
  • Check in – option to check in to a meeting from 10 minutes before until 10 minutes after the start of the meeting.

The Room Schedule card works with the following cloud-based calendar providers:

  • Google G Suite
  • Microsoft Office 365

Prerequisites

Before you begin, ensure that you have the following prerequisites met:

  • You will need Editor or Publisher permissions to be able to create the card.
  • You will need Network Admin permissions as a minimum to manage and configure devices.
    • Network Admin permissions gives you the ability to manage devices and users for a network.
    • As a Network admin, you can register and configure devices.
    • Network Admin permissions are granted by an admin of the network, which can either be the Account Owner or other Network Admins.
  • You have already installed the Appspace App and registered the appropriate tablet devices to Appspace.

You will also need to have your calendar provider configured beforehand. Please refer to the following how-to articles to configure the appropriate calendar provider that is used in your organization:

Create and configure the Room Schedule card with Google G Suite

Now that you have your calendar provider configured and the Appspace App installed and running on a registered device, you can start the process of running the Room Schedule card on it. This part of the guided path goes through the steps of configuring the Room Schedule card to work with Google G Suite.

If you are using Microsoft Office 365 as your calendar provider, skip to the next part.

To create a Room Schedule card and configure it for your device, simply follow the steps below.

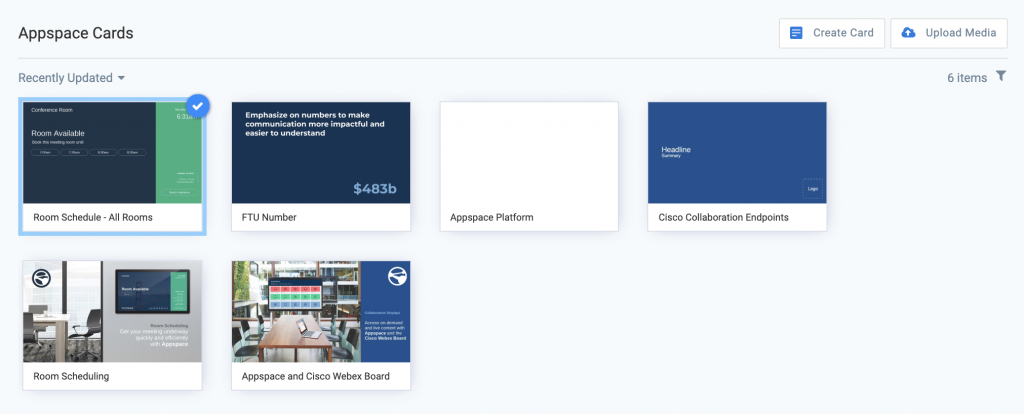

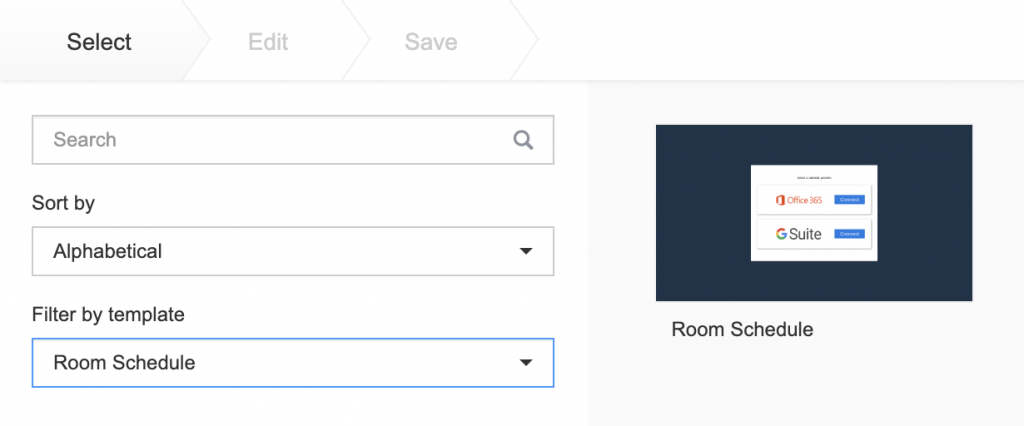

Create a new card with the Room Schedule template

In the console, select Create Card from the Quick Action menu. To quickly locate the Room Schedule card, select Room Schedule from the Filter by template dropdown.

1

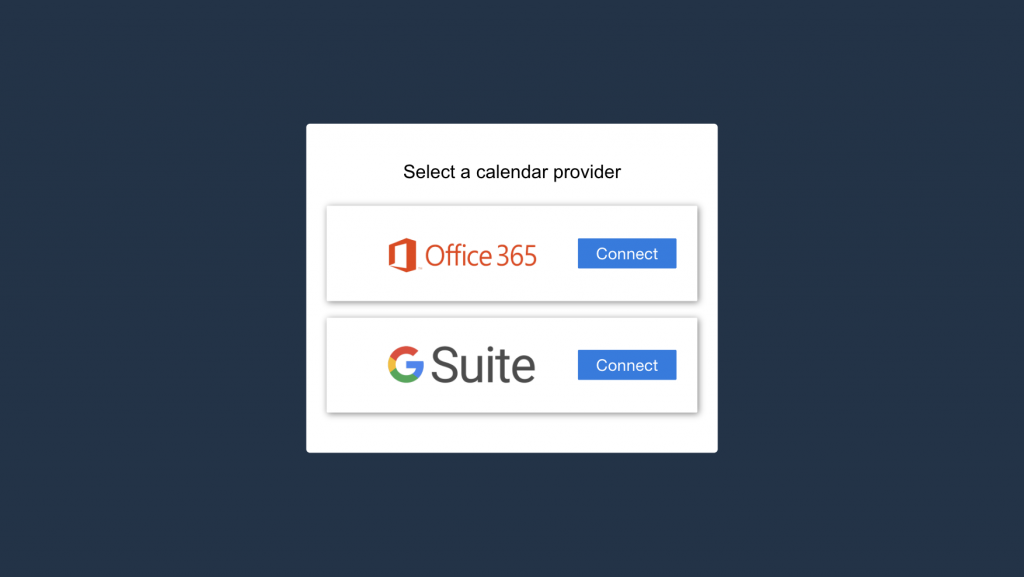

Select the G Suite option and enter credentials

If you have not done so already, please contact your IT administrator for credentials.  Enter your booking account credentials to authenticate the Room Schedule card.

2

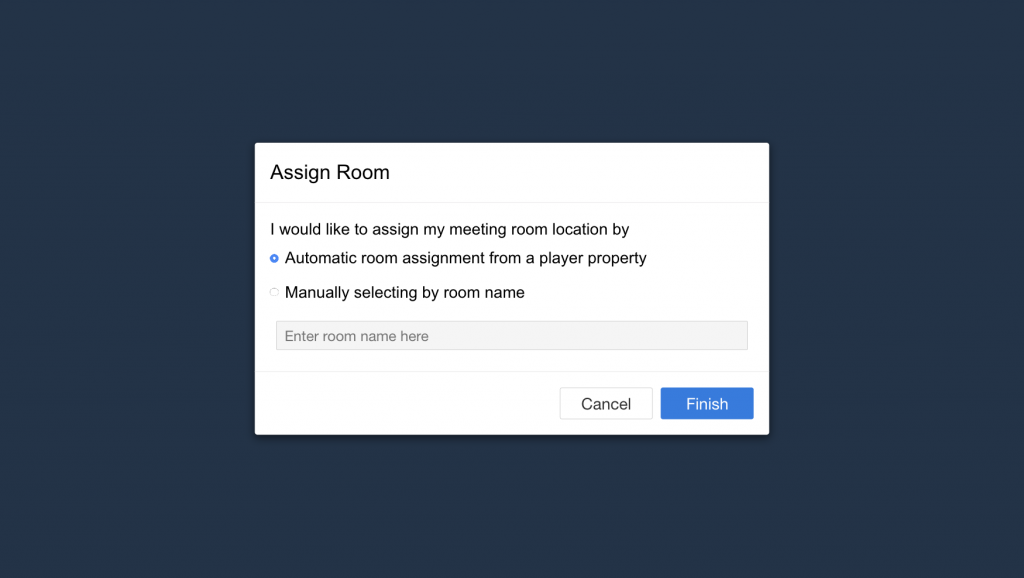

Automatic room assignment

This is the option we recommend as it allows you to use the same card (with the defined configuration and branding themes) for multiple rooms.

You must then add a device property to each device and ensure it points to the desired meeting room, where you will have one specific tablet for each meeting room.

Device property:

  • card.room.roomid = resource id

Device property examples:

  • Device property for Meeting Room 1 device: card.room.roomid = 47563454656
  • Device property for Meeting Room 2 device: card.room.roomid = 34547409516

The resource id is obtained from the G Suite Calendar Resources page for each physical meeting room configured. For reference, please refer to the how-to article: Configure resources (meeting rooms) in Google Calendar.

Once the calendar provider configuration is complete, you will need to add in the device property. Click here for how-to instructions to add a device property. You will need Network Admin or Account Owner privileges to add device properties.

3

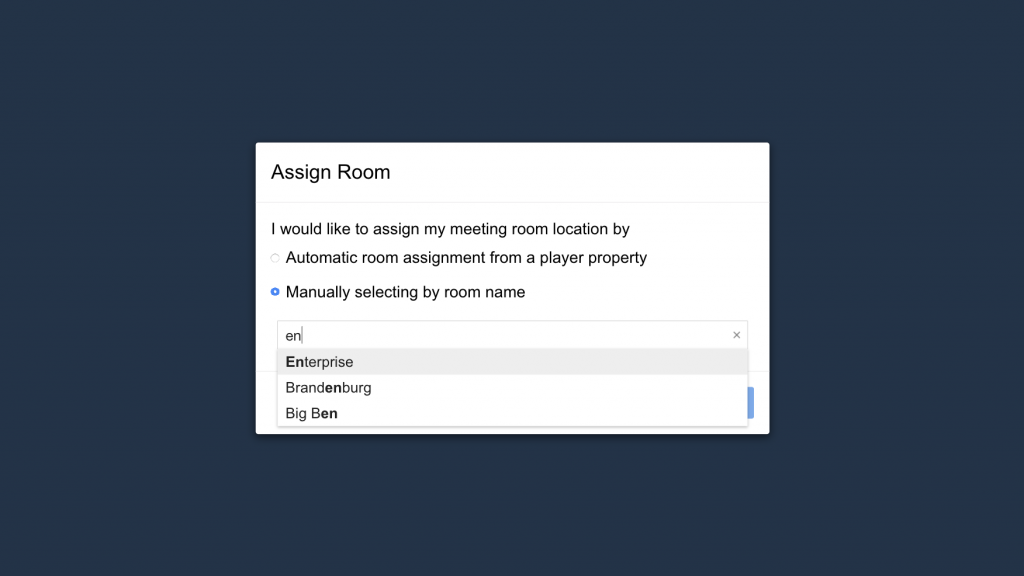

Option for manual room assignment

If you prefer to assign a specific Room Schedule card and channel per device, then you can select the manual room assignment option. The calendar provider will return a list of selectable rooms, and you will need to choose one.

With the manual room assignment option, this means that if you have 10 rooms, you must create 10 cards for each room.

4

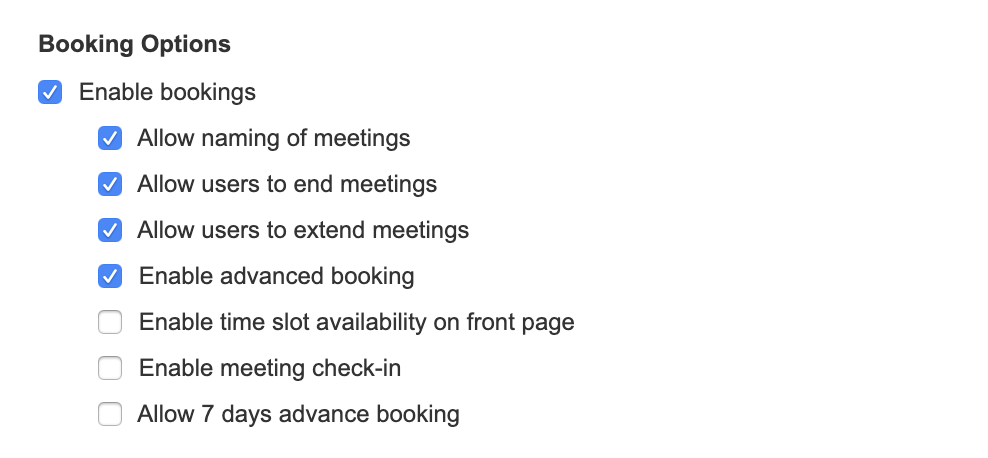

Configure booking options

Check the option to Enable bookings to configure room booking options that can be made available to people. Room booking options include:

  • Allow naming of meetings
  • Allow users to end meetings
  • Allow users to extend meetings
  • Enable advanced booking
  • Enable time slot availability on front page
  • Enable meeting check-in
  • Allow 7 days advance booking.
5

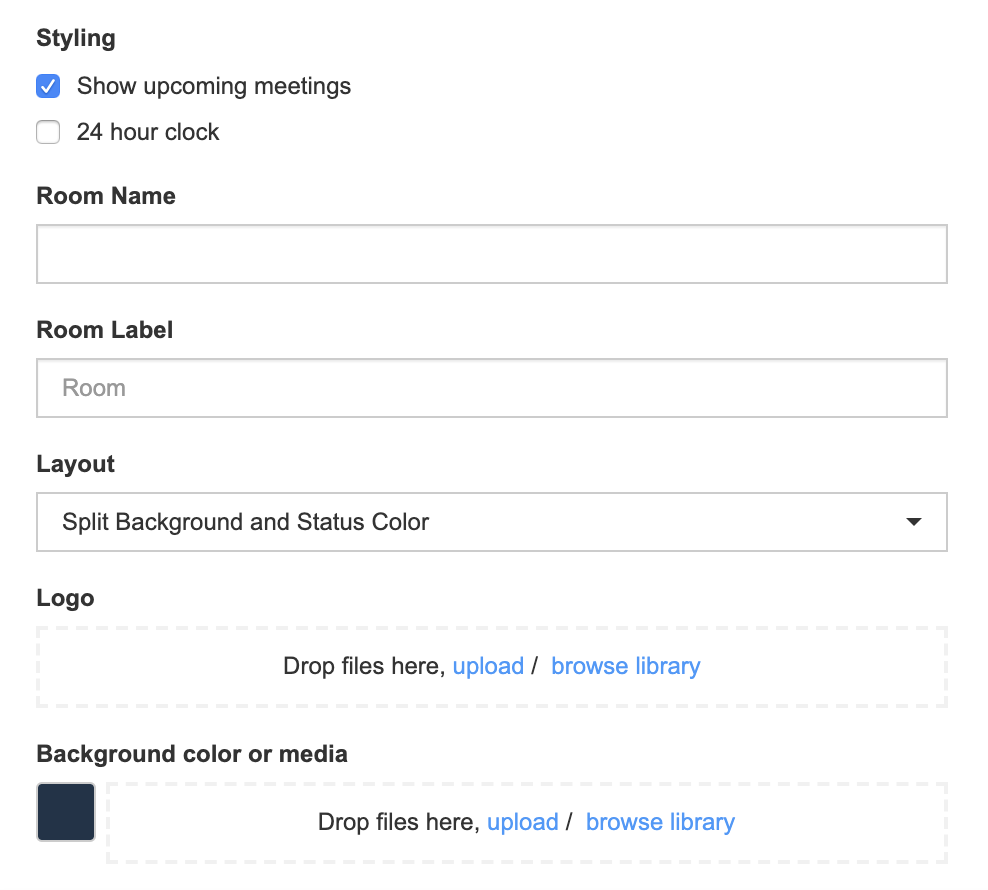

Additional styling options

Under the Styling section, you can check the option to Show upcoming meetings to display upcoming meetings of the day. To display the time in 24 hour format, check the option for the 24 hour clock.

You can also stylize the card further with the following options and components:

  • Room Name
  • Room Label
  • Layout
  • Logo
  • Background color or media
  • Background Mask Color
  • Available State Color
  • Occupied State Color
6

Save the Room Schedule card

Once you have finished configuring all of the Room Schedule details, click on Next to finish the card creation process. Give your card a title, and make sure that you are saving the card to the folder and library location of your choice. Click on Save to complete.

7

To the next part

If you are configuring the Room Schedule card with Microsoft Office 365, you can continue with the next section.

Otherwise, you can skip ahead to the final section to add the Room Card to a channel for a device.

Create and configure the Room Schedule card with Microsoft Office 365

Now that you have your calendar provider configured and the Appspace App installed and running on a registered device, you can start the process of running the Room Schedule card on it. This part of the guided path goes through the steps of configuring the Room Schedule card to work with Microsoft Office 365.

To create a Room Schedule card and configure it for your device, simply follow the steps below.

Create a new card with the Room Schedule template

In the console, select Create Card from the Quick Action menu. To quickly locate the Room Schedule card, select Room Schedule from the Filter by template dropdown.

1

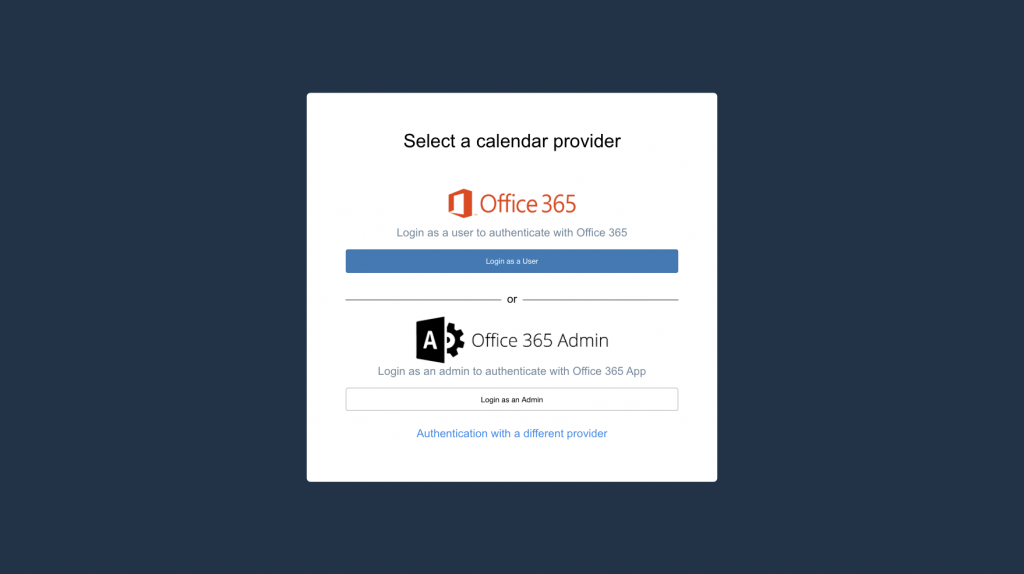

Select the Office 365 option and enter credentials

If you have not done so already, please contact your IT administrator for credentials. Some large organizations may have one account for each room.

Select the appropriate authentication depending on your booking account type.

2

Automatic room assignment

This is the option we recommend as it allows you to use the same card (with the defined configuration and branding themes) for multiple rooms.

You must then add a device property to each device and ensure it points to the desired meeting room, where you will have one specific tablet for each meeting room.

Device property:

  • card.room.roomid = resource id

Device property examples:

  • Device property for Meeting Room 1 device: card.room.roomid = room-001@appspacedev.onmicrosoft.com
  • Device property for Meeting Room 2 device: card.room.roomid = room-002@appspacedev.onmicrosoft.com

The resource id is the email alias obtained from the Office 365 Calendar Resources page for each physical meeting room configured. For reference, please take a look at the how-to article: Configure Office 365 resources.

Once the calendar provider configuration is complete, you will need to add in the device property. Click here for how-to instructions to add a device property. You will need Network Admin or Account Owner privileges to add device properties.

3

Option for manual room assignment

If you prefer to assign a specific Room Schedule card and channel per device, then you can select the manual room assignment option. The calendar provider will return a list of selectable rooms, and you will need to choose one.

With the manual room assignment option, this means that if you have 10 rooms, you must create 10 cards for each room.

4

Configure booking options

Check the option to Enable bookings to configure room booking options that can be made available to people. Room booking options include:

  • Allow naming of meetings
  • Allow users to end meetings
  • Allow users to extend meetings
  • Enable advanced booking
  • Enable time slot availability on front page
  • Enable meeting check-in
  • Allow 7 days advance booking.
5

Additional styling options

Under the Styling section, you can check the option to Show upcoming meetings to display upcoming meetings of the day. To display the time in 24 hour format, check the option for the 24 hour clock.

You can also stylize the card further with the following options and components:

  • Room Name
  • Room Label
  • Layout
  • Logo
  • Background color or media
  • Background Mask Color
  • Available State Color
  • Occupied State Color
6

Save the Room Schedule card

Once you have finished configuring all of the Room Schedule details, click on Next to finish the card creation process. Give your card a title, and make sure that you are saving the card to the folder and library location of your choice. Click on Save to complete.

7

To the next part

Now that you have created and configured the Room Schedule card with a calendar provider, the next step is to add the Room Schedule card to a channel that will then run on the appropriate device.

Add the Room Schedule card to a channel

Now that you have the Room Schedule card configured to work with your calendar provider, you will need to add the card to a channel which can then be assigned to your targeted devices.

To create a channel with your Room Schedule card and configure it for your device, simply follow the steps below.

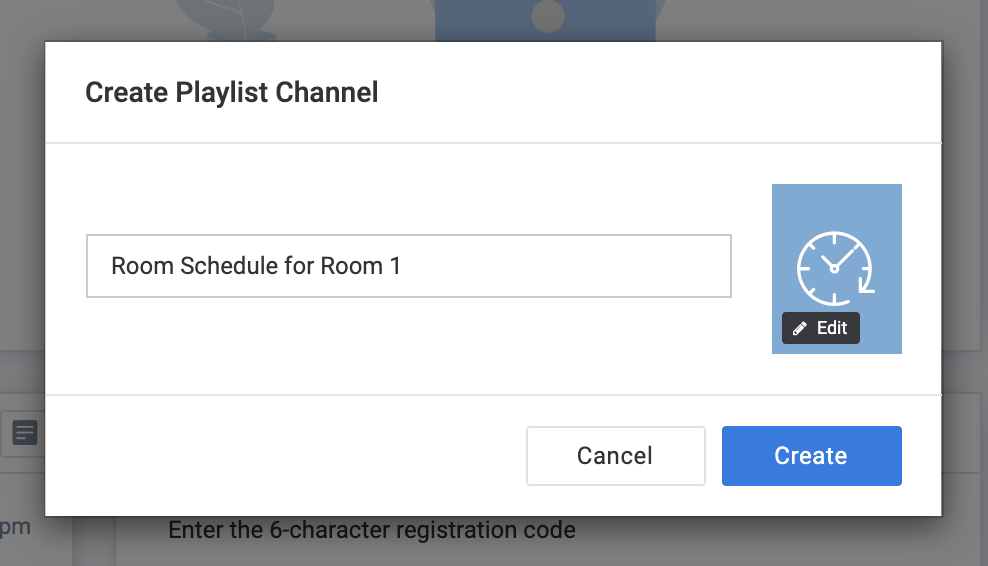

Create a new channel for the Room Schedule card

Create a new channel by clicking on Create Channel from the Quick Action menu. This channel will contain only a single item which will be the Room Schedule card that you have configured. Since it will only contain this single item, you can give a name that best describes the function of the channel such as Room Schedule for Room 1. You can also select a custom icon to make it easy to identify the channel for assignment.

1

Add the Room Schedule card to the channel

Click on the Add Content button in the newly created channel and select the Room Scheduled card you created and configured.

2

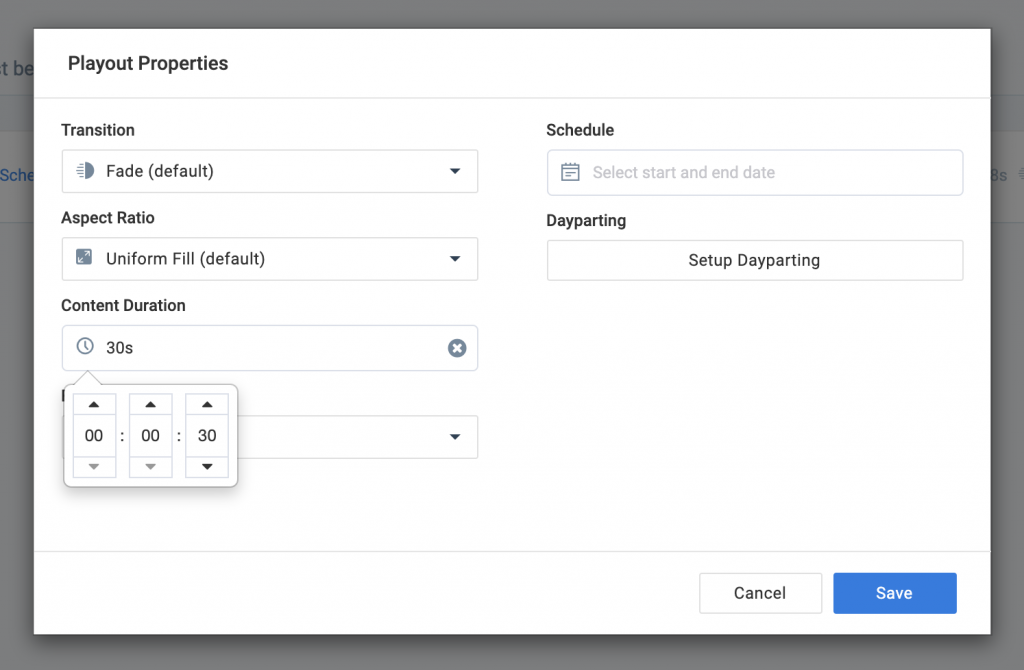

Set the content duration for the Room Schedule card

As your channel will only have a single Room Schedule card, we recommend setting the content duration to a minimum of 30 seconds instead of the default value of 8 seconds. This ensures that the channel does not keep reloading the card while someone is in the process of booking the room. Click on Apply to confirm your settings.

3

Select your target device for assignment

With the channel ready, you will then need to assign the channel to your target device. Go to the Devices workflow and select the device from the list to do the channel assignment.

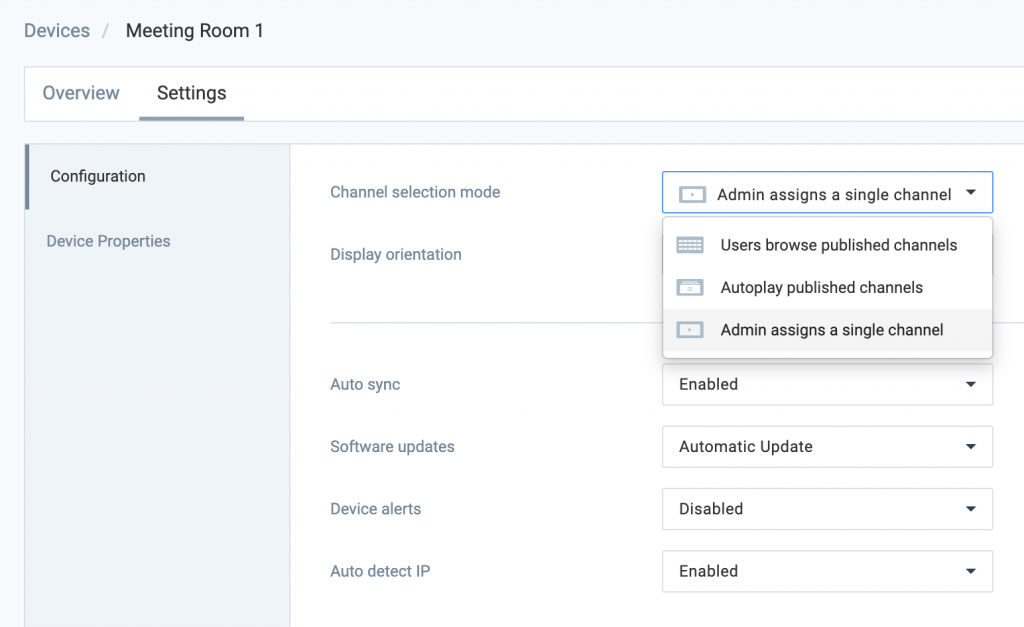

Selecting the device will launch the Device Information overlay. Click on the Settings tab and select Admin assigns a single channel from the Channel selection mode dropdown. Click on Save to apply the settings.

4

Set the channel assignment for the device

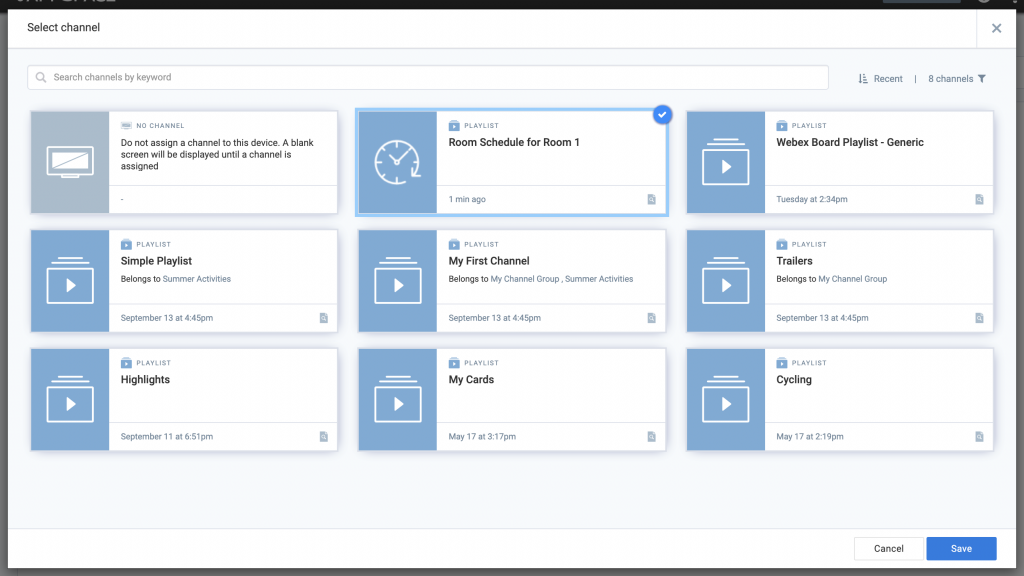

Click on the Overview tab and you will now see the option to select a channel for this device. Click on the Select channel button and select the Room Schedule channel you created and then click on Save to confirm the channel assignment.

Once the settings take effect, the device will automatically show the appropriate details for the room. You are now ready to book meetings!

5

Congratulations!

You have successfully configured the Room Schedule card with your calendar provider and deployed it to a device.

Now that the device has been assigned to work with the appropriate room, everyone can start using it to book meetings right at the room location itself, and also view the current meeting information for that room.
